US LASER CORP: Product Catalog

Consoles and Frames

TABLE OF CONTENTS

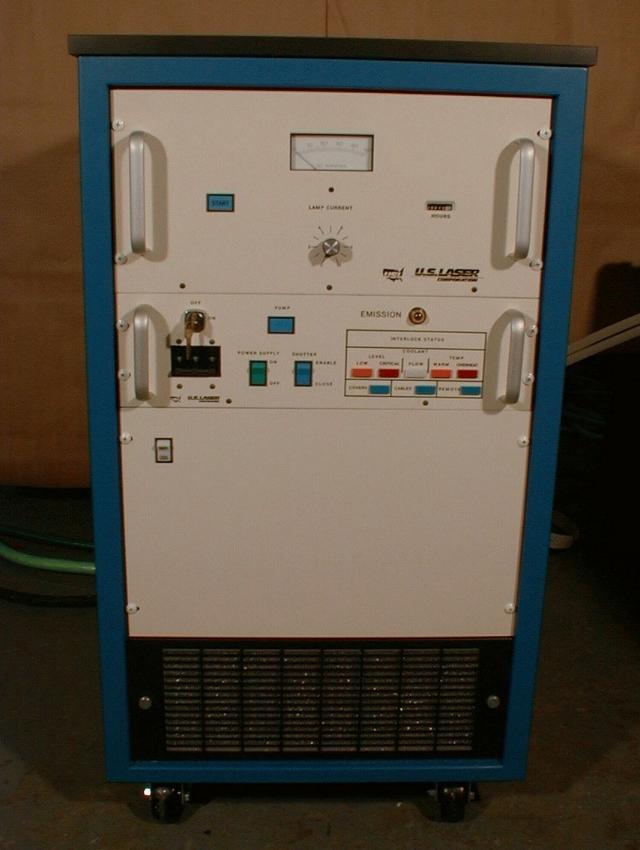

Power Supply Console

The U.S. Laser power supply console is designed to provide all necessary electrical and laser head cooling functions in a common console. Included are the DC power supply to start and drive the laser lamp, line matching isolation transformer, a water to water heat exchanger for cooling, and interface electronics to control interlocks, shutter drive and other necessary functions. All electronics chassis are rack mounted using slides for easy access. The cooling system has an integral water reservoir, as well as a replaceable particle filter and deionizer . The cooling system is designed for use with distilled water using all stainless steel and plastic components. The console features welded steel construction, with removable side panels and hinged rear door for easy access. All access panels and doors are safety interlocked. Power supplies consoles are available with rating of 4 KW to 18 KW. Please contact the U.S. Laser sales department for help in selecting the appropriate system.

Related Products: Power Supplies, Power Distribution Chassis

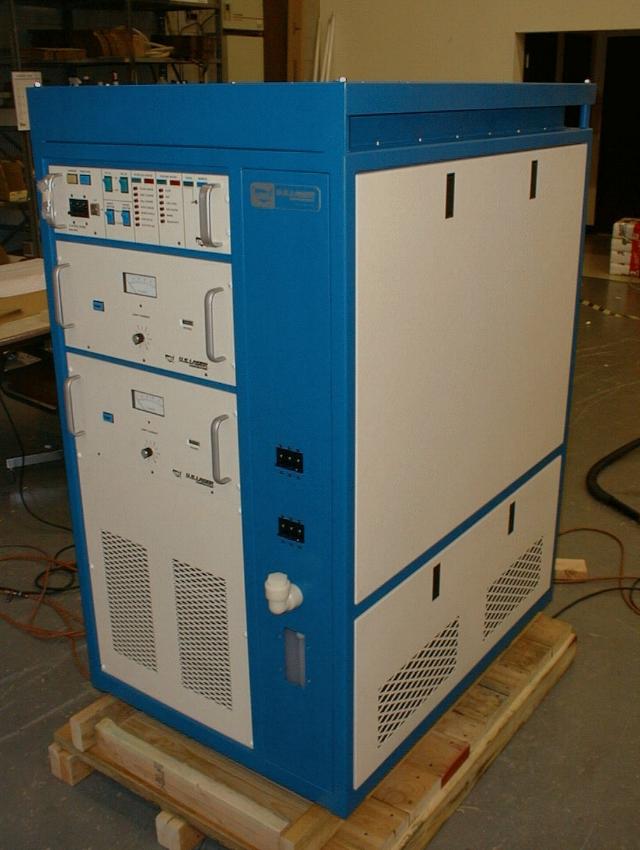

Dual Power Supply Console

The U.S. Laser dual power supply is designed as a convenient source to drive two Model 406 or 408 laser heads. The console features heavy duty welded construction with interlocked removable access panels. Specially designed system of cooling fans insures adequate cabinet air flow to cool the interior electronics. All electronic rack panels are mounted on chassis slides for easy access. The power supplies may be controlled locally via front panel controls, or remotely via computer interface. The cooling system is designed for distilled water using all stainless steel or plastic components, and features a large common reservoir to insure that coolant water to each head is at exactly the same temperature.


Support FramesSupport Frame

These support frames are designed to be used in conjunction with model 406 and 408 high powered laser systems with enclosures. Frames are fabricated from heli-arc welded steel box tubing to provide a rigid and stable mounting base. A storage cabinet is built into the frame to provide a convenient storage area. Two versions are available, one for the single and dual head enclosures, and one for the four head enclosures. Special custom versions are also available, please contact the U.S. Laser sales department.

Related Product: Lasers
