US LASER CORP: Product Catalog

Cooling System Parts

TABLE OF CONTENTS

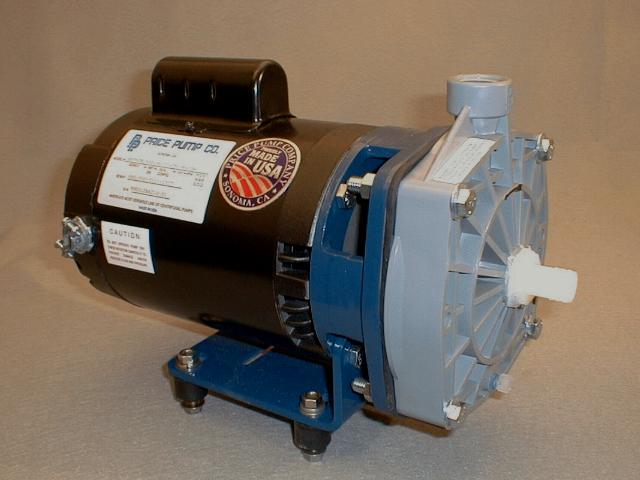

Water Pumps, Centrifugal

These close coupled centrifugal water pumps are selected specifically for use in pumping coolant water in laser systems. All parts of the pump exposed to water are plastic or other inert material, and are ideal for use in distilled and deionized water systems. Pumps are available with both single phase and three phase motors, and impeller sizes as listed below. Centrifugal pumps are popular for use in laser systems because of their high water flow capability. The U.S. Laser pump line accommodates most commercial laser systems. Contact the U.S. Laser sales department for special pump requirements.


Part No. Description
N3111-1 3/4 HP single phase centrifugal pump W/ 5 1/2" impeller and 230 VAC motor.
N3111-2 3/4 HP 3 phase centrifugal pump W/ 5 1/2" impeller and 230 VAC motor
N3111-3 1 HP 3 phase centrifugal pump W/ 6" impeller and 230 VAC motor

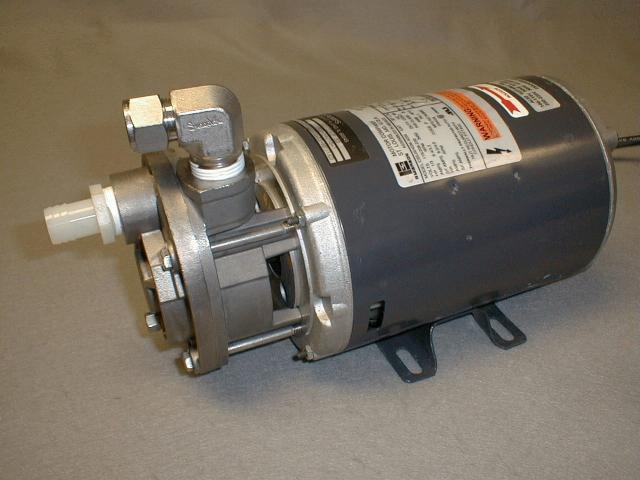

Water Pump, Turbine

These regenerative turbine water pumps provide an effective alternative to centrifugal pumps when moderate pressure and high flow is desired. The pump housing and impeller are fabricated from 316 stainless steel with Viton seal and ceramic seat. Pumps are available with dual voltage single phase motors, which are typically much lower horsepower than corresponding centrifugal pumps due to the pups higher efficiency. For further information on these pumps for laser applications, please contact the U.S. Laser sales department.


Part No. Description
N3111-4 1/3 HP single phase regenerative turbine pump, 115/208-230 VAC
N3111-5 3/4 HP three phase regenerating turbine pump, 208-230/460 VAC

Water Pump Parts

Replacement parts for centrifugal water pumps used in U.S. Laser and other popular laser systems.

Seal and Seat


Part No. Description
N3109 Water pump shaft seal kit, includes seal and seat
N3109-1 Water pump seal kit for Regenerative turbine pump No. N3111-4
N3109-2 Water pump seal kit for Regenerative turbine pump No. N3111-5
N3109-3 Water pump end bell seal and slinger. Fits all USL centrifugal pumps.
N3110-1 Water pump seal kit with 5.5" impeller, end bell gasket, and slinger. (Does not include shaft seal No. N3109)
N3110-2 Water pump seal kit with 6" impeller, end bell gasket, and slinger. (Does not include shaft seal No. N3109)
N3110-3 Water pump seal kit with S.S. impeller, for Regenerative turbine pump No. N3111-4.
N3110-4 Water pump seal kit for pump no. N3111-5

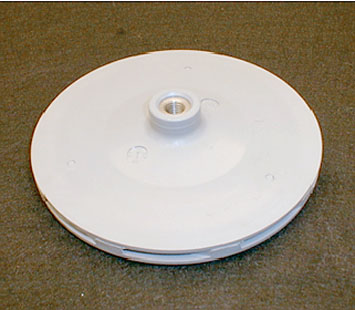

N3112-1 Replacement 5.5" impeller for centrifugal pumps
N3112-2 Replacement 6" impeller for centrifugal pumps
N3113-1 Replacement 3/4 HP single phase motor for centrifugal pumps
N3113-2 Replacement 3/4 HP three phase motor for centrifugal pumps
N3113-3 Replacement 1 HP three phase motor for centrifugal pumps
N3114 Replacement volute for all U.S. Laser Model N3111 centrifugal pumps

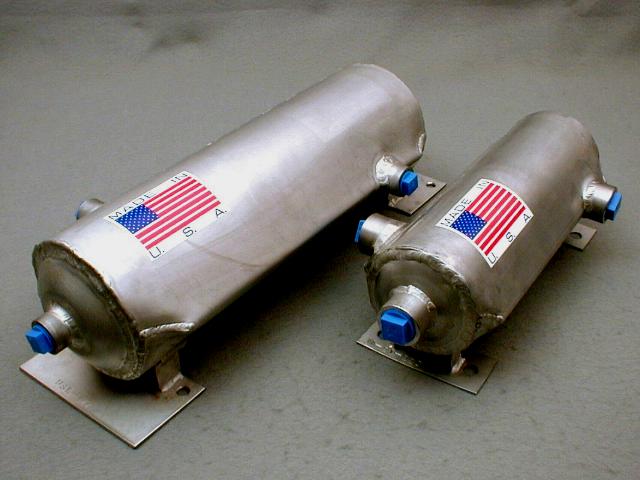

Heat Exchangers

Heat exchangers are used in laser systems to extract heat from the coolant water using either tap water or a refrigerant. U.S. Laser heat exchangers are fabricated from 304 Stainless steel using the spiral plate design for high efficiency. Two sizes are available, one for heat loads up to 8 KW, and one for heat loads up to 20 KW. For application on systems other than produced by U.S. Laser, contact sales department for further assistance.


Part No. Description
N4000-850-005 8 KW Heat exchanger for U.S. Laser model 403, 404, and 405 laser systems.
N4000-850-006 20 KW Heat exchanger for U.S. Laser model 406 & 408 laser systems.

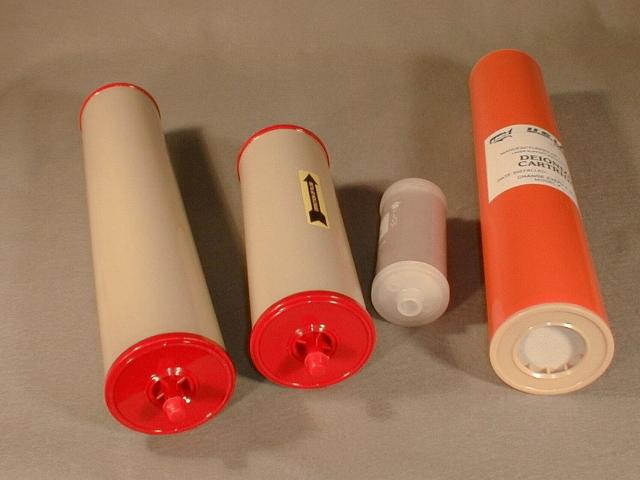

Deionizers

These replacement mixed bed resin deionizers are designed to maintain the electrical integrity of the laser system cooling water by removing unwanted mineral ions. Deionizers should be changed at intervals of 6 months or less depending on system usage.


Part No. Description
N3101 Deionizer cartridge for U.S. Laser systems, (except Markers) 17" body length, hose nipple connections.
N3102 Deionizer cartridge for U.S. Laser Marker, Control Laser, Holobeam and other systems. 10" body length, hose nipple connections.
N3103 Special Deionizer cartridge for USL pulsed lasers, 5" body length, 1/4" female pipe thread connections.

Water Filters

Replacement water filters for U.S. Laser, Control Laser, Holobeam and other laser systems using 9 3/4" elements. Standard filtration rating is 5 um. For systems using shorter than standard element lengths, filter may be cut to size. Water filters should be replaced every 6 months or sooner, and should be replaced simultaneously with the deionizer cartridge.


Part No. Description
N3104 Water particle filter element, 5 um, 9 3/4" long
N3104-1 Water particle filter element, 5 um, 4 7/8" long
N3104-2 Water particle filter element, .5 um, 9 3/4" long

Proportioning Valves

Proportioning valves are designed to regulate the water temperature in laser cooling systems. When properly installed, coolant water temperature can be maintained to +/- 1oC. Regulating temperature is factory preset and is not adjustable. Because proportioning valves constantly regulate the water flow, they do not suffer from the severe temperature swings typical from other systems, and are not affected by changing heat load conditions. Valve is constructed from plastic, stainless steel and other inert material to be fully compatible with distilled water. Two valves are available, one for most common laser systems, and one for high powered systems that require higher water flow. If you are unsure of the proportioning valve you need, please contact the U.S. Laser sales dept., we will be glad to assist you in selection of the proper valve.


Part No. Characteristics
N4000-900-003 4 Gallons Per Minute max, 70oF
N4000-900-005 4 Gallons Per Minute max, 80oF
N4000-900-006 4 Gallons Per Minute max, 90oF
N4000-900-010 8 Gallons Per Minute max, 70oF
N4000-900-011 8 Gallons Per Minute max, 80oF
N4000-900-012 8 Gallons Per Minute max, 90oF

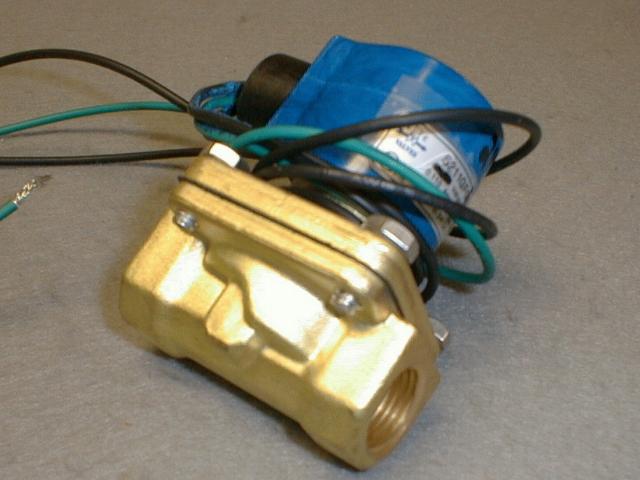

Solenoid Valves

Solenoid valves are used on the secondary water side (tap or refrigerated water) of systems equipped with proportioning valves to shut off the system water flow when power is removed. Solenoids are 24 VAC, and have 0.5" female NPT inlet and outlets.


Part No. Description
N4000-900-009 24 VAC 60 HZ solenoid valve,0.5" female NPT inlet and outlet.
N4000-900-008 24 VAC 50 HZ solenoid valve,0.5" female NPT inlet and outlet.

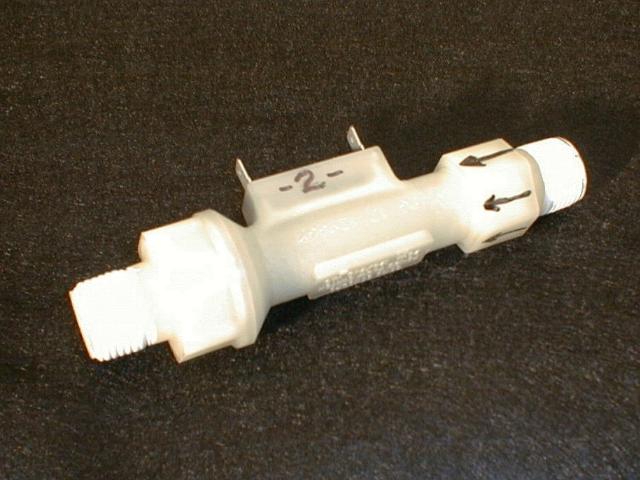

Flow Switches

These inline flow switches are used in the interlock loop on U.S. Laser laser systems to sense proper coolant flow levels. Switches are constructed of all plastic and stainless steel, and are suitable for use with distilled water coolant. Switches are normally open, and are activated when coolant flows.


Part No. Description
N8000-500-017 Flow switch, 0.5" Mpt male, 2 GPM
N8000-500-023 Flow switch, 0.5" Mpt male, 3 GPM

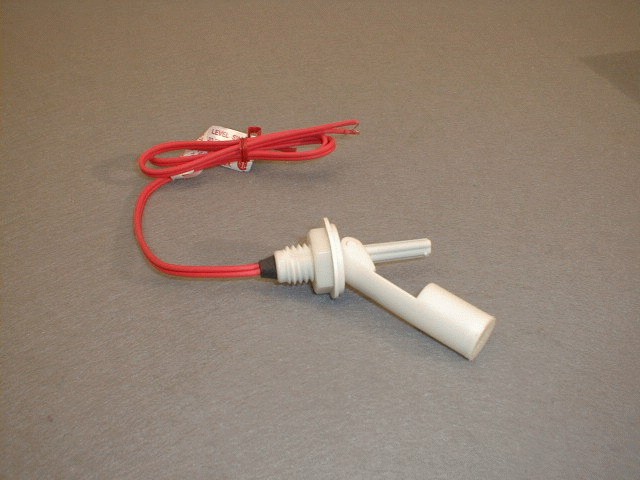

Level Switches

Level switches are mounted in the side of the coolant system reservoir, and are used to sense coolant level. Switches are constructed of all plastic and are suitable for use with distilled water.


Part No. Description
N8000-500-028 Level switch

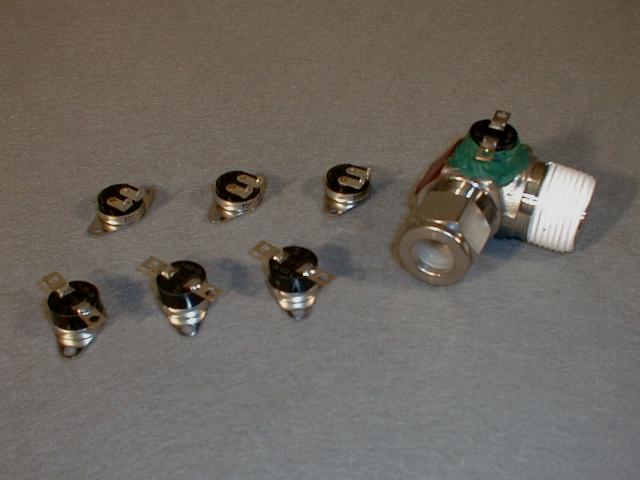

Temperature Switches

Used in the U.S. Laser interlock loop to protect the system in the event of an over temperature condition. Switches are available in both standard and close tolerance.


Part No. Description
N8000-500-029 Standard temperature switch, 85oF
N8000-500-030 Standard temperature switch, 90oF
N8000-500-031 Standard temperature switch, 100oF
N8000-500-032 Standard temperature switch, 110oF
N8000-500-033 Standard temperature switch, 120oF
N8000-500-034 Standard temperature switch, 130oF
N8000-500-035 Close tolerance temperature switch, 110oF
N8000-500-036 Close tolerance temperature switch, 120oF

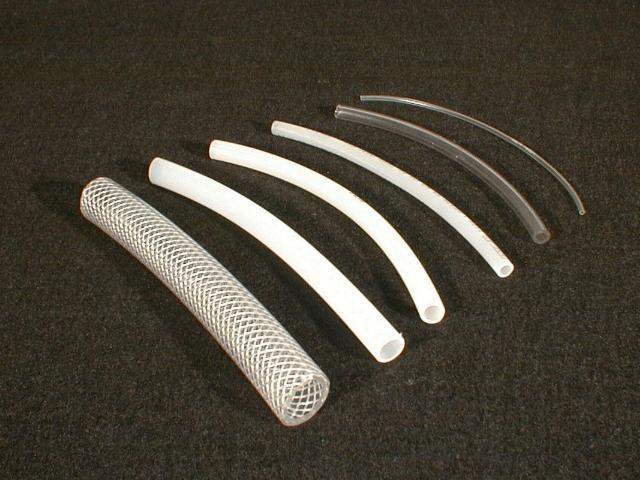

Water Tubing

U.S. Laser stocks a line of plastic water tubing suitable for use with distilled water. Semi-rigid tubing is suitable for medium pressure supply and return lines to the laser head, while the Tygon flexible tubing is primarily used for Q-switch, and other low pressure (<20 PSI) utility uses.  Reinforced tubing is good for use at pressures up to 150 PSI.  Tubing is sold by length, please specify desired length to the nearest foot.


Part No. Description
N4000-750-000 Poly flow tubing (semi-rigid) 0.5" O.D. Used for laser head supply lines in lower power U.S. Laser laser systems.
N4000-750-004 Poly flow tubing (semi-rigid) 5/8" O.D. Used for laser head supply lines in high power U.S. Laser laser systems.
N4000-750-006 Reinforced 3/4" I.D., 1" nominal O.D. tubing used to supply water from the reservoir to the pump in all U.S. Laser laser systems.
N4000-750-007 Flexible 3/8" O.D.,1/4" I.D. Tygon style tubing used for power meter and other utility plumbing.
N4000-750-008 Flexible 1/8" O.D., 1/16" I.D. Tygon style tubing used for Q-Switch and other utility plumbing.
N4000-750-009 Reinforced 1/4" I.D., 3/8" nominal O.D. tubing used for power meter coolant lines and other general plumbing.

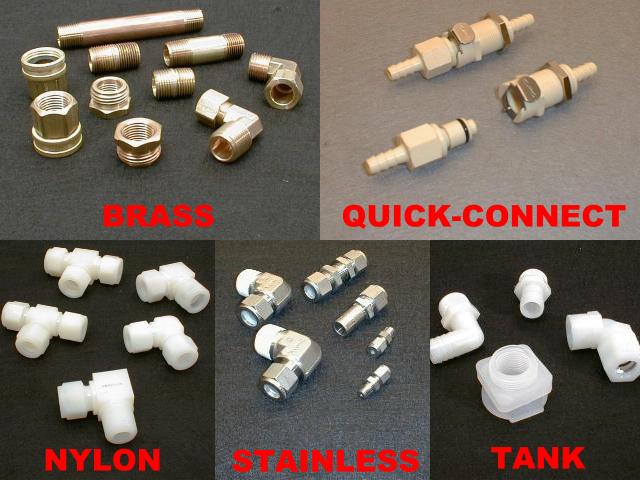

Water Fittings

U.S. Laser stocks an extensive line of water fittings specifically for use in laser cooling system plumbing. Depending on the area of usage, fitting are available in either nylon, stainless steel, or brass. Nylon and Stainless steel fittings are used on the primary (distilled water) cooling circuit, while brass or nylon fittings are used on the secondary (tap water) side. Consult U.S. Laser sales department for help in selecting the correct fitting.
