US LASER CORP: Product Catalog

Flow Tubes

TABLE OF CONTENTS

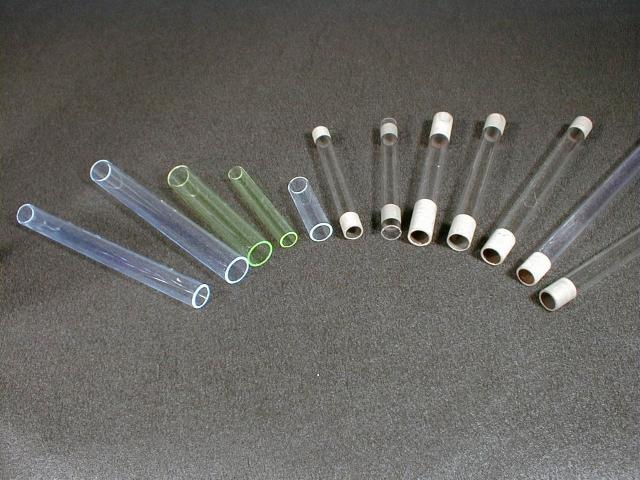

Lamp Flow Tubes

U.S. Laser flow tubes are designed to be used with Nd:YAG laser heads, and are fabricated from high quality, high temperature glass tubing. They are direct replacements for the tubes used in U.S. Laser and other laser systems listed below. Special flow tubes are available on request, consult with sales dept.

Related Products: Laser Lamps


Part No. For use with laser:
N3105-A Control Laser model 510, JEC model 1020, Holobeam model 255 or 256
N3105-B Control Laser model 512, JEC 1024
N3105-C Holobeam model 2550
N3105-D Holobeam or Control Laser model 258 and 520
N3105-E Holobeam or Control Laser model 2660
N3105-F U.S. Laser model 402A
N3105-G U.S. Laser model 404T
N3105-H U.S. Laser model 404, 404L
N3105-I U.S. Laser model 403T
N3105-J U.S. Laser model 403C
N3105-K U.S. Laser model 405, 405L
N3105-L U.S. Laser model 406
N3105-M U.S. Laser model 403A
N3105-N U.S. Laser model 403
N3105-R U.S. Laser model 408

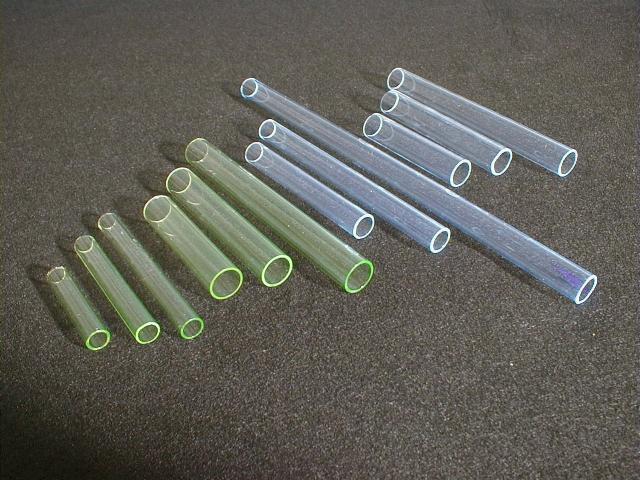

Rod Flow Tubes

Laser rod flow tubes are fabricated from special high temperature glass, which is specially designed to absorb U.V. light emitted from the laser lamp, while providing maximum transmission in the laser rod pump band. Flow tubes are available for most industrial laser systems. Consult U.S. Laser sales department for flow tubes not listed below, or for specials.

Related Products: Laser Rods


Part No. For use with laser:
N3106-A Control Laser model 510, JEC model 1020, Holobeam model 255 or 256
N3106-B Control Laser model 512, JEC model 1024
N3106-C Holobeam models 2550
N3106-D U.S. Laser model 403T, Control Laser model 520, Holobeam model 258
N3106-E U.S. Laser model 403C, and 403A
N3106-F U.S. Laser model 404
N3106-G Holobeam model 2660, Control Laser model 2660
N3106-H U.S. Laser model 405
N3106-I U.S. Laser model 406
N3106-J U.S. Laser model 402A
N3106-K U.S. Laser model 408
N3106-L U.S. Laser model 404T
N3106-M U.S. Laser model 403

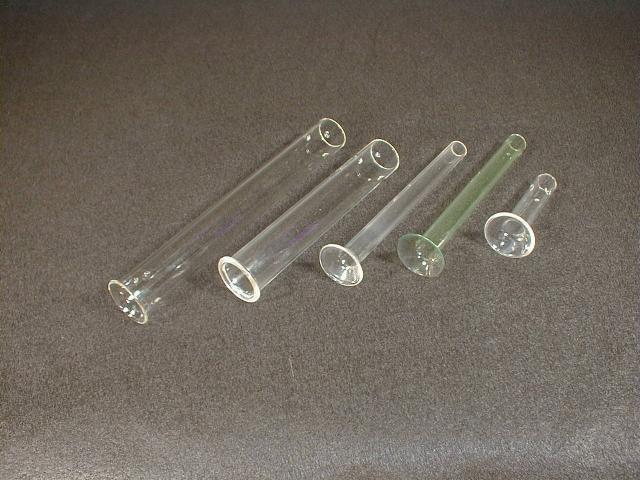

Lamp/Rod Flow Tubes For Helical Lamp Systems

These flow tubes are designed to be used in helical lamp pulsed laser systems. Model numbers listed below are provided for reference, they may also fit other laser systems as well, contact U.S. Laser sales dept.


Part No. For use with laser:
N3107-1-A Holobeam 300 series with 3/8" ruby rod
N3107-1-B Holobeam 300 series with 3/8" Nd:YAG rod
N3107-2-A Holobeam 600 series with 3/8" ruby rod
N3107-2-B Holobeam 600 series with 3/8" Nd:YAG rod
N3107-3-A Holobeam 600 series with 1/2" ruby rod
N3107-3-B Holobeam 600 series with 1/2" Nd:YAG rod
N3107-4-A Holobeam 800 series with 3/4" ruby rod
N3107-4-B Holobeam 800 series with 3/4" Nd:YAG rod
