Optical Mounting System

The U.S. Laser laser mounting system consists of a precision extruded aluminum optical rail, and a carriage mount designed to be attached to it. The carriage mount features a three point mounting system, and an adjustable position clamp. All U.S. Laser optical mounts are designed to directly bolt to the carriage mount, which insures optical centerline alignment.


Optical Rail

Optical rail is extruded from 6061 aluminum, and is supplied black anodized in standard lengths. U.S. Laser optical rail is directly compatible with U.S. Laser, Control Laser, Lee Laser and Lasermetrics carriage mounts.

Related Products: Optical Rail Enclosure

See drawing in pdf


Part No. Description
N2001 30" optical rail, black anodized
N2002 36" optical rail, black anodized
N2003 60" optical rail, black anodized
N2004 66" optical rail, black anodized
N2005 90" optical rail, black anodized
N2006 optical rail, special lengths up to 90", (not anodized)

Carriage Mounts

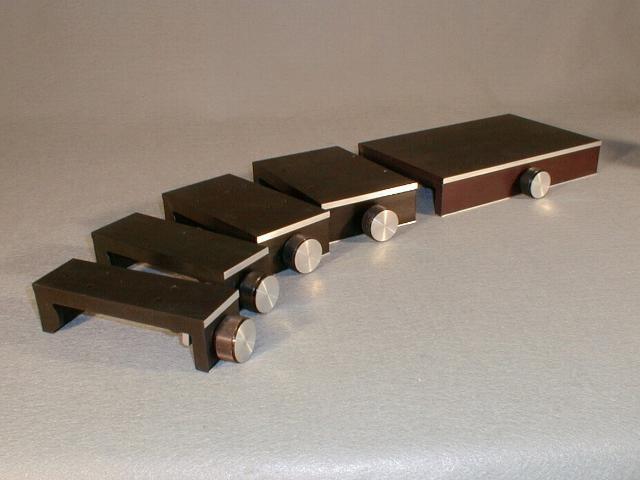

The U.S. Laser carriage mounts are fabricated from 6061 extruded aluminum, and feature a three point mounting system with a locking knob for securely locating it. U.S. Laser carriage mounts are compatible with Control Laser, Lee Laser, and Lasermetrics optical rails.

Related Products: Mounts for Optical Components

See drawing in pdf


Part No. Description
N2010 1 3/4" carriage mount, black anodized (standard carriage mount)
N2011 3" carriage mount, black anodized
N2012 6" carriage mount, black anodized
N2013 Special length carriage mount, black anodized, per inch
