Power Meters

U.S. Laser offers a line of power meters suitable for use in measuring and aligning laser beams. Meters are available with analog, digital or both displays. Detectors are either air or water cooled depending on the laser power level, and are calibrated against a NIST calibrated detector.

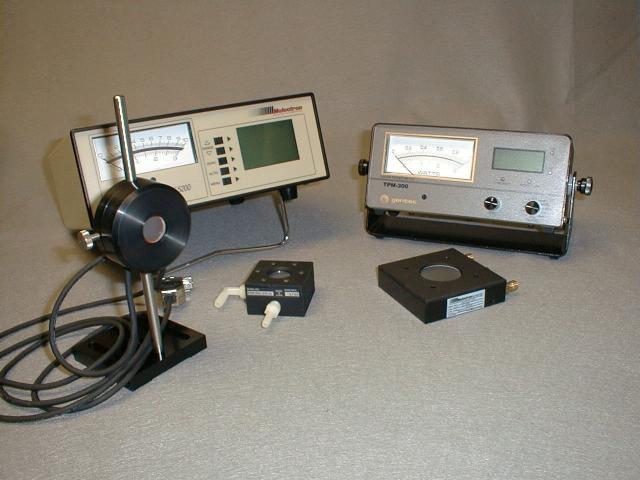

N1035 Power Meter N1034-2 Power Meter BoxN1035-1, -2, -3 Power Meters


Part No. Description
N1035-1 An air cooled power meter assembly for use at power levels up to 30 watts. The U.S. Laser power meter features a large 5" analog display.
N1035-2 A water cooled power meter assembly for use at power levels up to 150 watts. The U.S. Laser power meter features a large 5" analog display.
N1035-3 A water cooled power meter assembly for use at power levels up to 1000 watts. The U.S. Laser power meter features a large 5" analog display.
N1035-5 An air cooled power meter assembly for use at power levels up to 30 watts intermittently. The power meter assembly features both analog and digital displays.
N1035-6 A water cooled power meter assembly for use at power levels up to 150 watts. The power meter assembly features both analog and digital displays.
N1035-7 A water cooled power meter assembly for use at power levels up to 1000 watts. The power meter assembly features both analog and digital displays.
N1035-8 A water cooled power meter assembly for use at power levels up to 3000 watts. The power meter assembly features both analog and digital displays.

Power Meters Boxes:

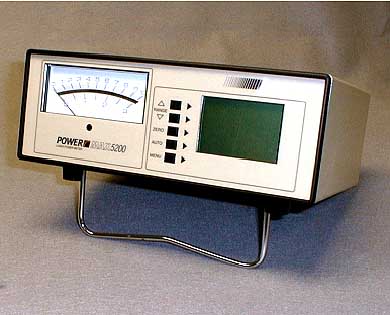

Power meter boxes are used to display the output power signal from a power detector such as the USL model N1036. Power detectors generate an output which is proportional to the beam power. The meter box translates this signal to directly read the output in watts. Meter boxes are available in two versions. One features a large (5") analog display, the other features both analog and a digital display. These meters are designed to be used with, and are directly compatible with the USL model N1036 series detectors. Meter boxes come with the BNC cable necessary for connection tot he detector.N1034-2 Power Meter Box w/analog & digital displayN1034-1 Analog Display Meter box w/cable



Part No. Description
N1034-1 Analog display power meter box with cable
N1034-2 Power meter display box with analog and digital displays

Slide Mount Power Meter Assembly

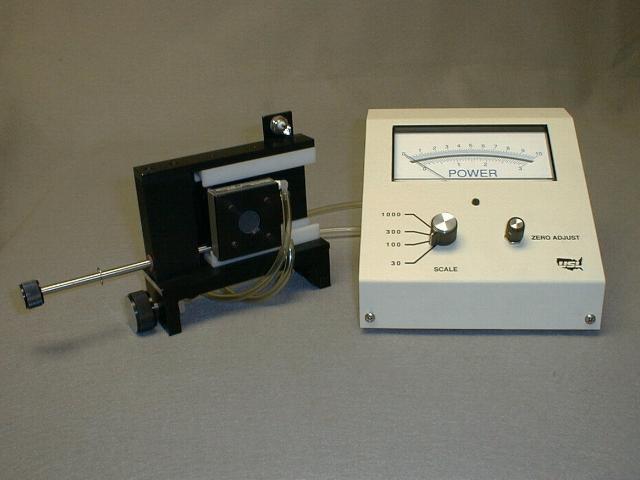

This laser power meter assembly is designed to mount directly on the optical rail in the output beam path. To sample the laser output power, or align the beam, the detector is merely slid into the beam path, where it will directly read the laser system output power. To return to normal system operation, the detector is slid out of the beam path, providing an unobstructed path for the beam. The slide mount power meter includes either a 30 watt air cooled or 150 watt water cooled detector mounted on the slide mount, and an analog power meter assembly.


Part No. Description
N1035-9 Slide mount power meter assembly with 30 watt air cooled detector and analog meter assembly.
N1035-10 Slide mount power meter assembly with 150 watt water cooled detector and analog meter assembly.

Power Detectors

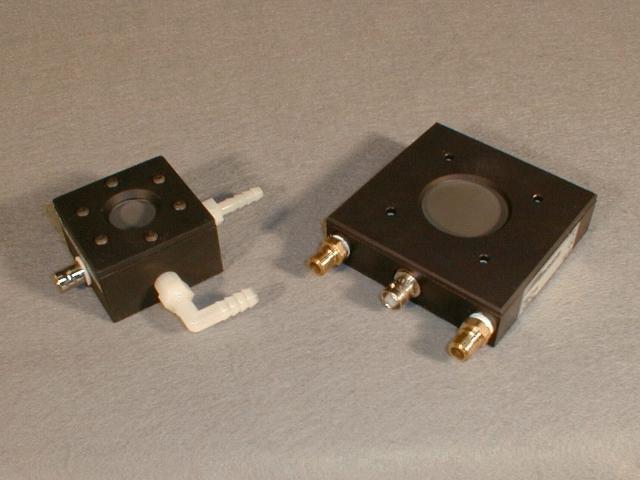

These power detectors are designed to convert the thermal energy from a laser beam to a voltage signal proportional to output power. Depending on the output power level of the laser, the detector will be either air or water cooled. Air cooled detectors may be used for intermittent duty on lasers with a power level of 30 watts or less, while higher power lasers will require a water cooled detector. These detectors are direct replacements for detectors used in U.S. Laser systems, and may be used wherever a compact power detecting device is required.


Part No. Description
N1036-1 Detector for beams 19 mm diameter or less. May be used air cooled for up to 30 watts intermittent or water cooled up to 150 watts.
N1036-2 Detector for beams 30mm diameter or less. May be used water cooled up to 1000 watts.

Inline Power Monitor Assembly

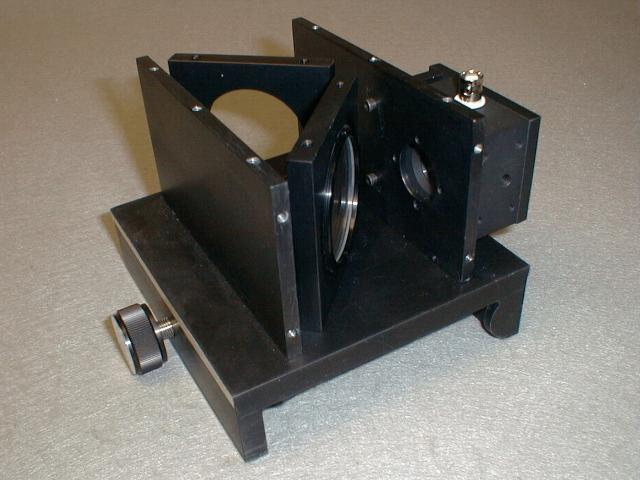

The inline power monitor provides a means of continuously monitoring the output of a laser during actual processing. A dielectrically coated beamsplitter directs a small percentage (typically 1% - 2%) of the laser beam into a power detector which is calibrated to display the laser output power on the matching meter assembly. To correct for the refractive walk-off associated with the sampling beamsplitter, an additional A/R coated beamsplitter is provided to bring the beam back on its original path. This assembly is recommended for use on randomly polarized multi-mode lasers, where the user can accommodate the 2%-4% typical insertion loss.


Part No. Description
N1035-11 Inline power monitor assembly for use at power levels up to 1500 watts
