CW + Q . Switched Nd:YAG Laser



 Low Order CW Multimode and Q-Switched Lasers  | High Power Multimode Q-Switched Lasers |  Pulsed Lasers| Request Product Literature | Sample Photos

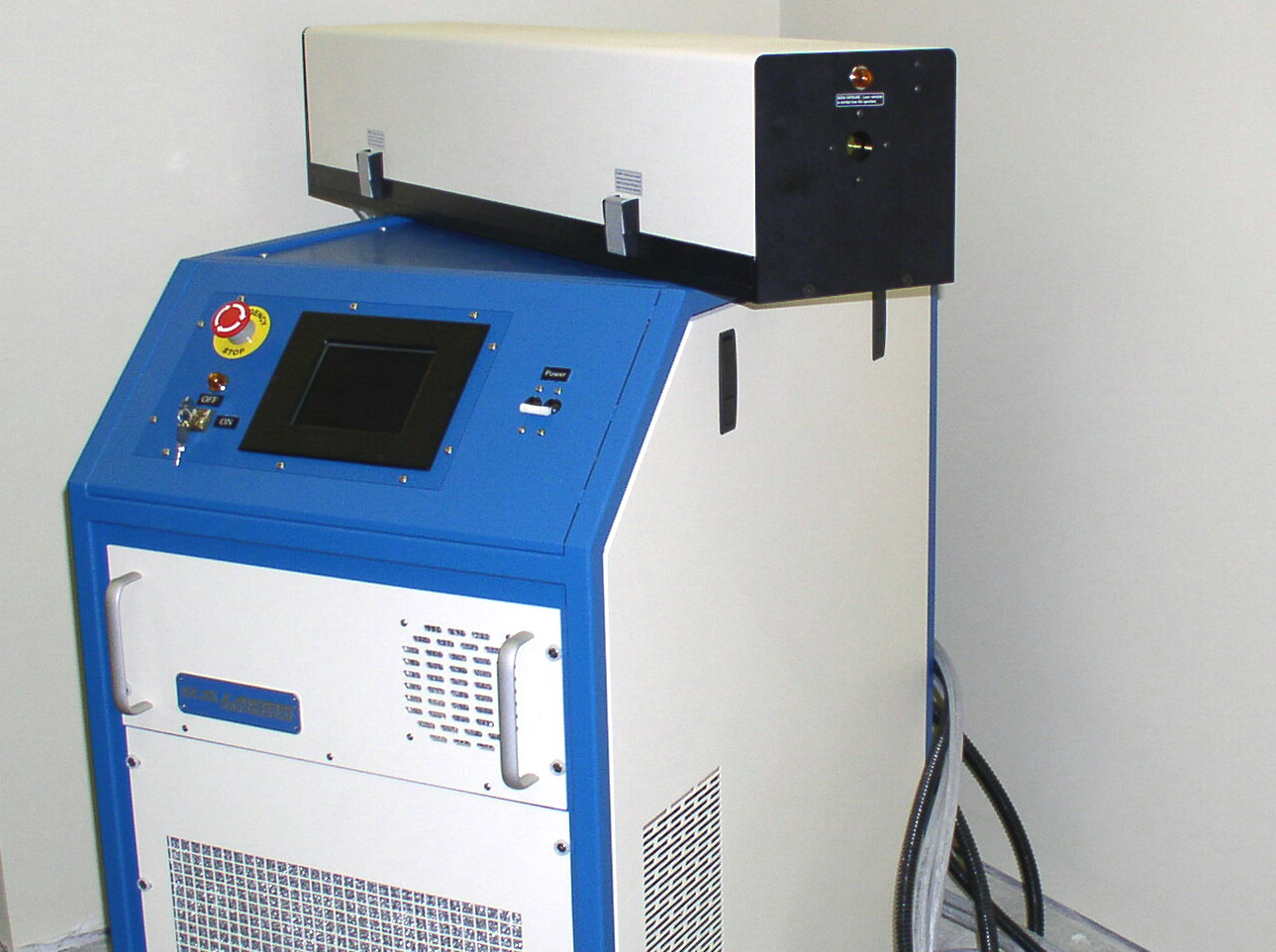

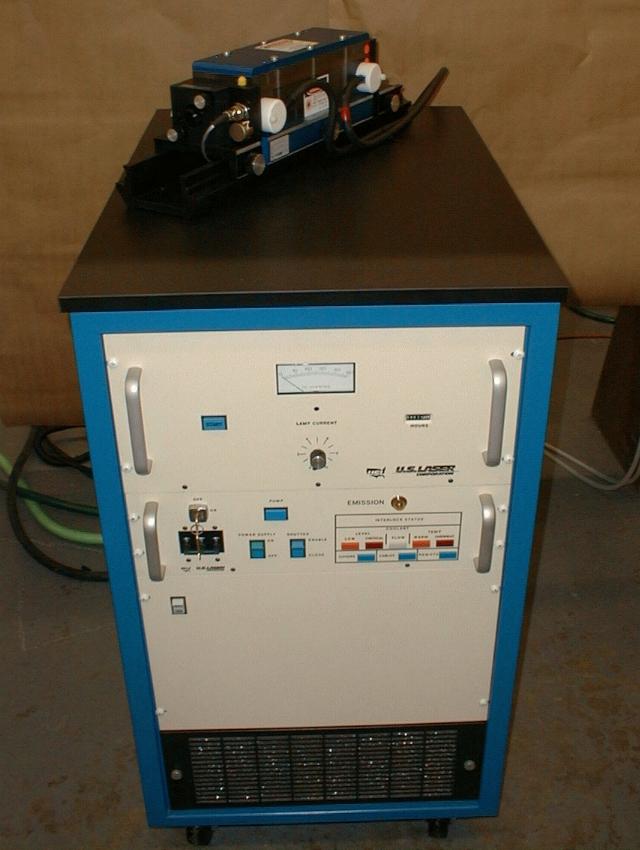

U.S. Laser manufactures a complete line of lamp pumped laser systems for end users, OEM's, and system builders. These high quality lasers are the same systems used in our line of turn-key laser systems. Standard configuration features a console mounted power supply and cooler assembly with a rail mounted laser head. OEM packages are available for rack mounting and other special configurations. C.W. versions are available, with power levels from a few watts of TEM00 to levels in excess of 2 KW in multimode. Q-switching as well as fundamental and harmonic  wavelengths are also available. Pulsed versions are also available at power levels up to 400 watts of average power. Please contact us to discuss our laser product line. We are confident that we have a laser to suit your needs, but if we don't, perhaps we can use our years of experience to design a custom laser for you.








High Power CW Multimode Lasers:

At the heart of U.S. Laser's high power CW multi-mode laser is our unique laser head design. The head is a single lamp, close coupled design, optimized for maximum pumping efficiency and high beam quality. The single lamp design reduces consumable costs, while the high efficiency reduces energy and cooling requirements.  High beam quality allows for   smaller focused spot size and high power density at the target. U.S. Laser's high power CW lasers, by virtue of their high efficiency single lamp design, offer an economical solution to many welding, cutting, heat treating and metal deposition applications. The head design allows for cascading of heads in a series periodic resonator. Single, two-headed and four-headed systems are available.

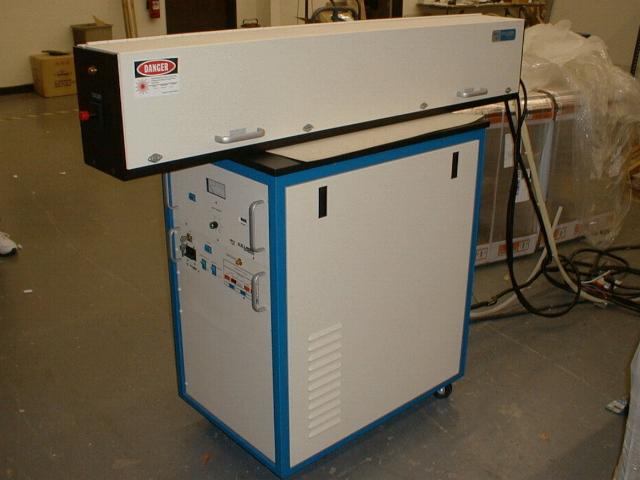

Low Order CW Multimode and Q-Switched Lasers:

U.S. Laser's low order multi-mode lasers offer superior beam quality for smaller focused spot size and higher power density at the target. They are ideal for soldering applications and precision welding and cutting. They are also offered in Q-switched configurations.



Low Order CW Multimode and Q-Switched

Model #

Model #

Max Output

Beam Diameter

Divergence





(watts)

(mm)

(mr)

403L

403LQ 50-75 4 4-6

404L

404LQ 120 5 4-8

405L

405LQ 150 5 4-10

CW and Q-Switched TEM00 Mode Lasers:

U.S. Laser's diffraction limited TEM00 mode lasers offer high power and stability for micro-machining, scribing, photovoltaic panel processing, drilling and resistor trimming applications.

TEM00 Mode Lasers

Model #

Max Output

Mode

Beam Diameter

Divergence



(watts)



(mm)

(mr)

403T 12-14 CW 1 d.l.

403TQ

 12-14

Q-Switched

1

d.l.

404T 16-18 CW 1 d.l.

404TQ

16-18

Q-Switched

1

d.l.


High Power Multimode Q-Switched Lasers:

U.S. Laser's high power multi-mode Q-Switched lasers offer high beam quality and very high peak power densities, ideal for paint stripping and other surface removal applications.

High Power Multimode Q-Switched Lasers

Model #

Max Output

Beam Diameter

Divergence

Energy Pulse @ 1KHZ



(watts)

(mm)

(mr)

(mj)
405Q 250 6 8-12 30-40
406Q 500 5 8-12 50-60

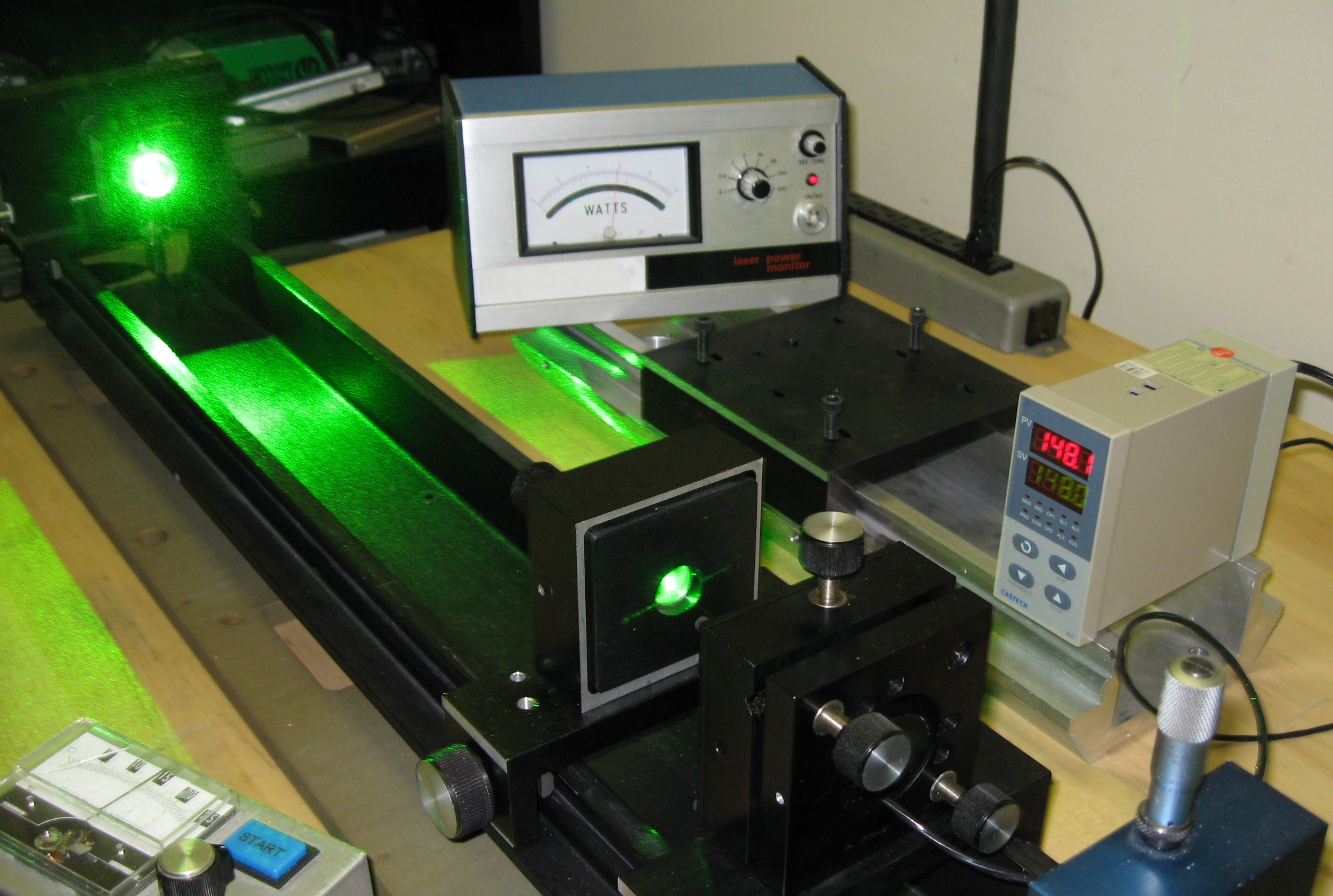

Frequency Multiplied Q-Switched TEM00 Mode Lasers:

U.S. Laser offers a variety of power levels in 532 nm frequency doubled Nd:YAG lasers.  We also offer frequency tripled and quadrupled ultra-violet lasers. Frequency multiplying assemblies are rail mounted for ease of insertion into beam path, allowing for rapid change-over between the available output frequencies. These systems offer high power and stability for micro-machining, scribing, photovoltaic panel processing, and drilling applications.

Frequency Multiplied Q-Switched TEM00 Mode Lasers

Model #

Wavelength

Max Output

Beam Diameter

Divergence



(nm)

(watts)

(mm)

(mr)

403QG

532

2.0

1

d.l.

403TQGH

532

4.0

1

d.l.

403TQG3

532

6.0

1

d.l.

403TQGS

532

2.5

1

d.l.

403TQNU

355

1.0-1.5

1

d.l.

403TQUV

266

0.25

1

d.l.


Pulsed Lasers

U.S. Laser's pulsed lasers are designed with small beam diameters and low divergence to deliver exceptional high brightness for welding and drilling applications. Simmer mode power supplies provide extended lamp life and excellent pulse-to-pulse stability. A fundamental mode (TEM00) version is also available for fine cutting applications.

High Power Pulsed Nd:YAG Lasers
Model #

Max Output

Beam Diameter

Max Energy per Pulse

Divergence



(watts)

(mm)

(J)

(mr-full angle)

303 100 6.3 30 2-6
303T 5 1 .2 D.L.
305 250 6.3 50 2-8
306 400 6.3 60 2-8
